New Products

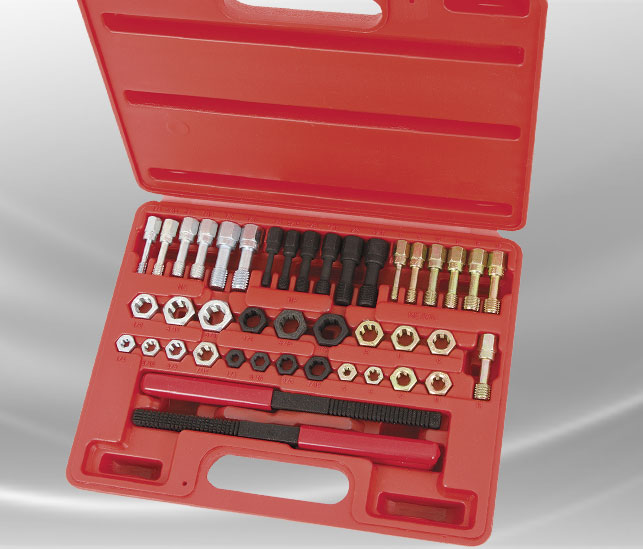

VT1782 | 43-pc. UNF,UNC & Metric Rethreader Kit

*Contain: seven UNC, seven UNF and
  seven metric rethreader dies, six UNC,
  six UNF and seven metric rethreader taps,
  one UNF and UNC rethreader file and one
  metric thread file.
*Rethreader die sizes::
 1/4”, 5/16”, 3/8”, 7/16”, 1/2”, 9/16” & 5/8” UNC
 1/4”, 5/16”, 3/8”, 7/16”, 1/2”, 9/16” & 5/8” UNF
 6X1.00, 8X1.25, 10X1.25, 10X1.50, 12X1.25,
 12X1.5, 12X1.75mm
*Rethreader tap sizes:
 1/4”, 5/16”, 3/8”, 7/16”, 1/2” & 9/16” UNC
 1/4”, 5/16”, 3/8”, 7/16”, 1/2” & 9/16” UNF
 6X1.00, 8X1.25, 10X1.25, 10X1.50, 12X1.25,
 12X1.5, 12X1.75mm
*Description pitch sizes:
  Metric FILE 0.75, 1.00, 1.25, 1.75, 2.00, 2.50
  AND 3.0mm
  SAE FILE 11, 12, 13, 14, 16, 18, 20 AND 24
  SAE FILE 9, 10, 12, 16, 20, 27, 28 AND 32
*Storage in blow mold case.
